    Copeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration Unit

    Ask Lasest Price
    Brand Name : Green&Health
    Model Number : GHC-50
    Certification : CE
    Price : 2500~10000 dollars
    Payment Terms : T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 10~15 Working Day
    • Product Details
    • Company Profile

    Copeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration Unit

    Guangzhou Manufacturer Walk Cold Fish Storage Freezer Cold Room Refrigeration Unit


    Product Description:


    • cold storage room is in thermal insulation materials such as polyurethane insulation board ,and create the suitable temperature by cooling facilities warehouse and low temperature conditions.
    • Cold storage room can be widely used in food,dairy,pharmaceutical,chenical,logistics,fruits and vegetables,eggs,hotels,supermarkets,hospitals,stations,ships,military etc

    What is the Specification of our cold room?


    Product NameCold Storage Room Refrigeration Unit
    Model No.GHC-40
    Temprature0℃(32℉) ~ 15℃(59℉) / -25℃(-13℉) ~ -18℃(-0.4℉) / -40℃(-40℉) ~ -30℃(-22℉)
    Cooling SystemAir Cooling
    CompressorCopeland/ Famous Brand
    Voltage220-380V / 50-60Hz
    RefrigerantR404a
    Thickness50mm / 75mm / 100mm / 120mm / 150mm / 200mm
    InstallationWith drawing
    PlugVarious Styles
    OEM / ODMYes

    Easily assembled cold storage room polyurethane panel:


    The joint of the PVC polyurethane insulation prefab cold storage room panel are made with tongue and groove edges and are locked together with cam lock design fasteners. The prefabrication cold room panel and other refrigeration system parts of the walk-in cooler and walk-in freezer chamber are shipped by knocked down uninstalled method to customers. This saves much freight cost for the modular cold-room transportation. When the unassembled cold room arrives, users can easily assemble and install the cold rooms by themselves. Or when users want to move the walk-in cooler or walk-in freezer to another place, the cold room panels of the mobile cold room chamber can be easily disassembled with a hex wrench and re-installed. Cold storage room installation & un-installation is just so simple!

    Panels Thickness:


    Thickness of polyurethane panelApplication temperature
    50mmTemperature 5°C or above
    75mmTemperature -5°C or above
    100mmTemperature -18°C or above
    120mmTemperature -25°C or above
    150mmTemperature -35°C or above
    200mmTemperature -45°C or above


    Notes: According to your requirements, the manufacturer can reasonably configure the materials that suit you, the size and thickness of the panels.


    • Material: polyurethane (PU), metal sheet.
    • Density of PU: 42kg/ m3
    • Metal sheet:according to requirements
    • Thickness of panel: 75mm,100mm,120mm,150mm,200mm

    Green&Health High Quality Easy Assemble Cold Room for Meat


    1. Refrigeration system:


    • Compressor: Copeland, Famous Brand
    • Condensing units: air cooler.
    • Evaporator: air cooler.
    • Refrigerant: R22 or R404a is available.

    2. Electric controlling system:


    • Schneider electric components, digital display for temperature setting and reading, automatic and manual control, warning light for running failure.

    3. Cold store door, air curtain machine, lighting:


    • Sliding door, manual opening and closing.
    • When door is opened, the air curtain machine and lights in cold storage can be running automatically.
    • Temperature setting around -18/-25/2~8°C for cooling storage
    • Main Applications: fruit and vegetable warehouse, egg storage, hotel, supermarket, hospital, blood bank, troops and laboratory,dairy factory, pharmaceutical factory, chemical factory, to keep stuff fresh for a long time and will not be effected by climate etc.
    • Copeland Compressor,Vertical scroll compressor
    • Painted-steel polyurethane panels,thickness 75mm,100~150mm, thermal insulation very well.
    • Cold storage room door size:0.8*1.8 meters stainless steel.sliding door for option.

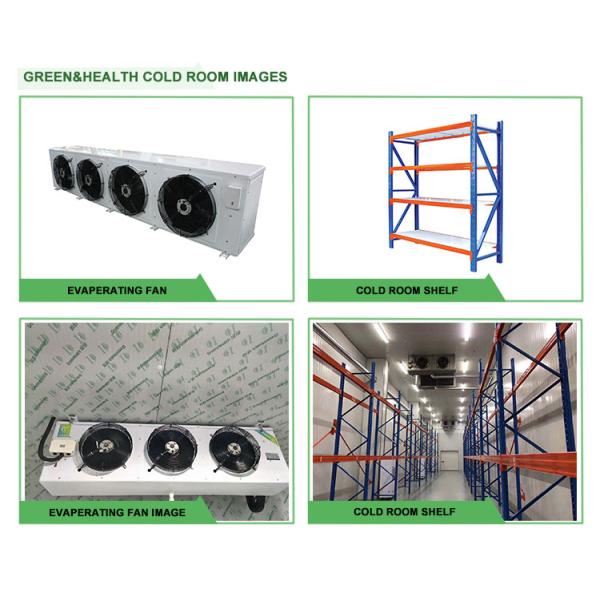

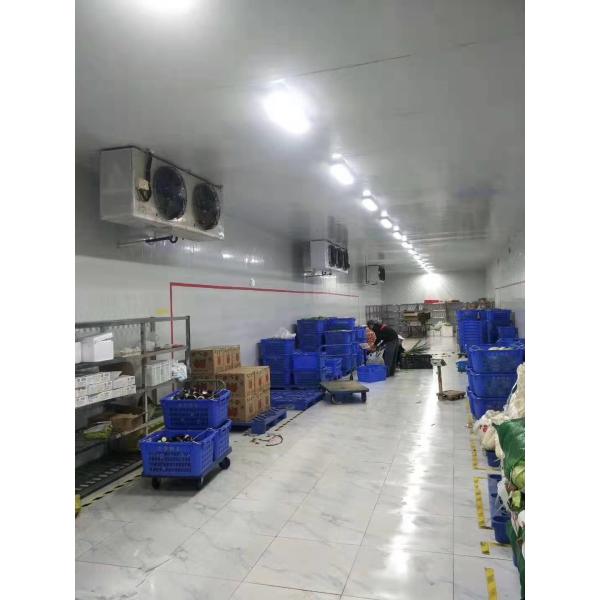

    Cold storage room images:

    Copeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration Unit
    Copeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration Unit
    Copeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration UnitCopeland Compressor Cold Fish Storage Freezer Cold Room Refrigeration Unit
